STT

DESIGN SERVICE

1. MODULE ADC 1GSPS 2 CHANNEL

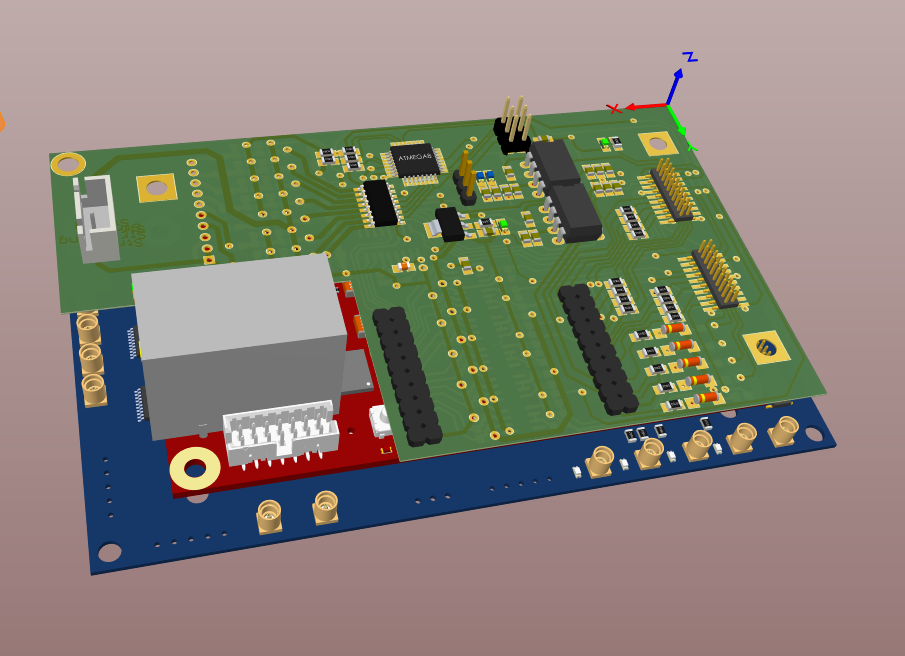

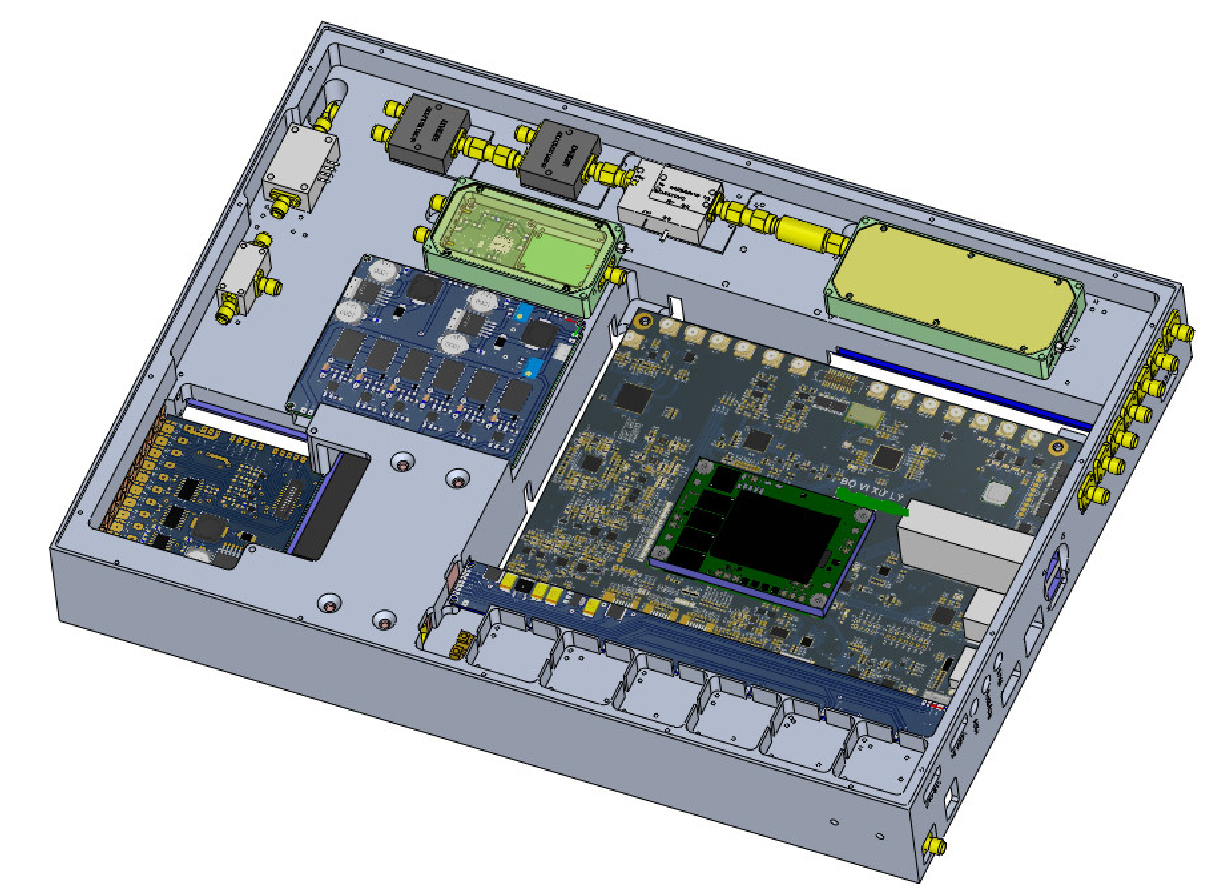

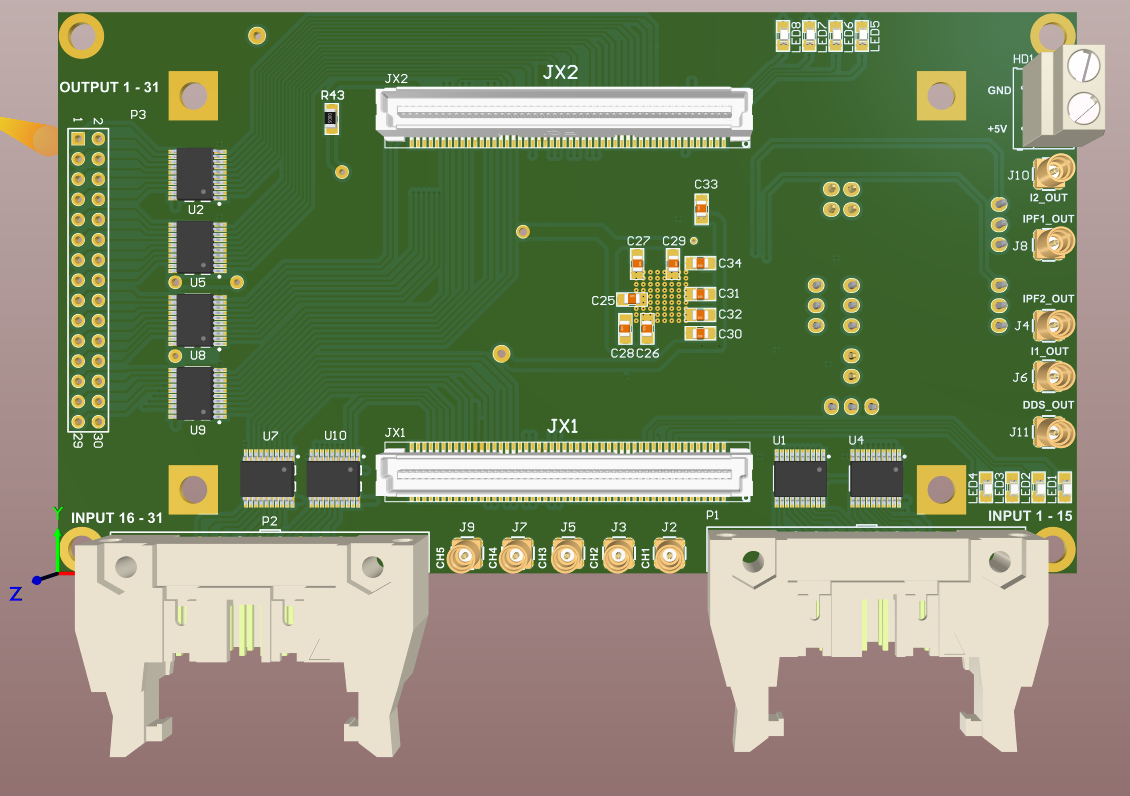

- this is 3D image of ADC 1GSPS 2 Channel, module use ADC board in https://hfequipment.vn/1gsps-high-speed-adc-2-channel

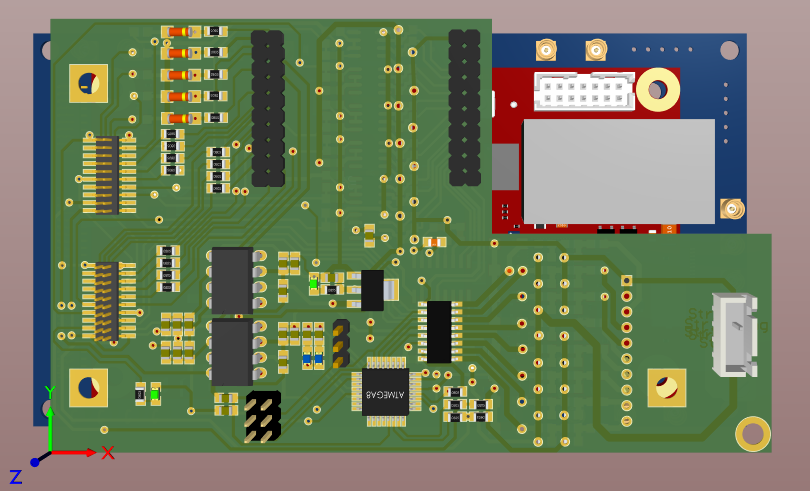

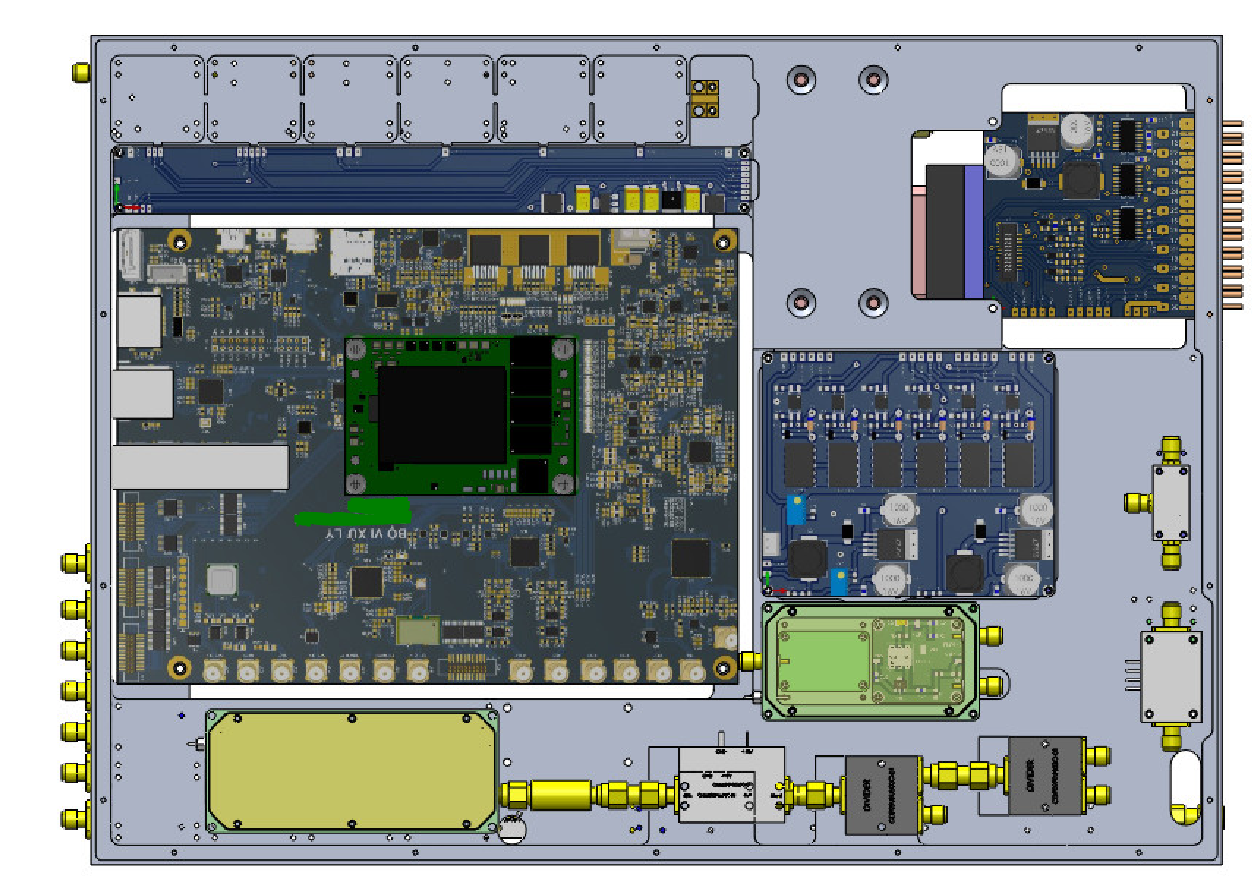

- other 3D image module 1GSPS ADC

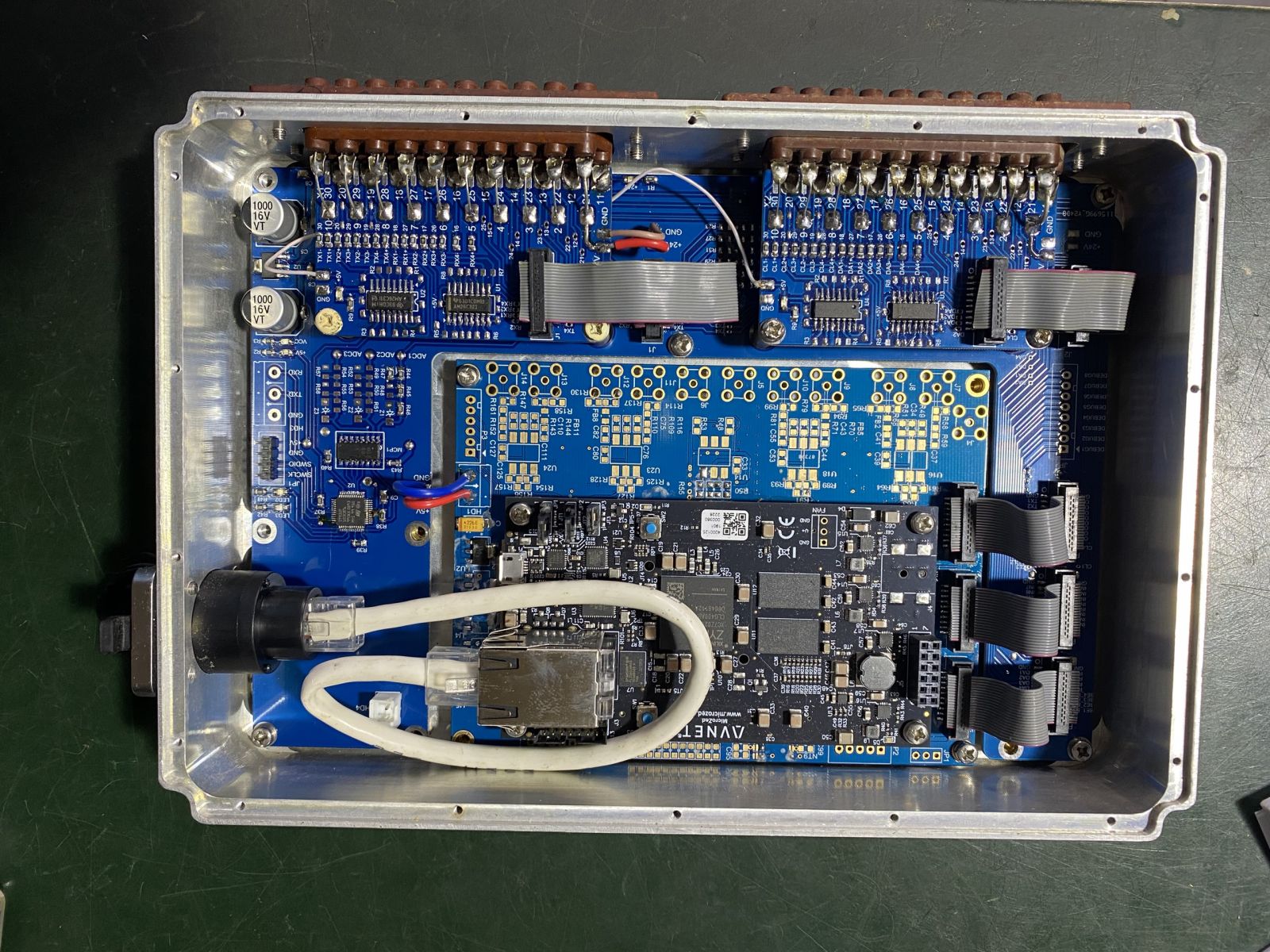

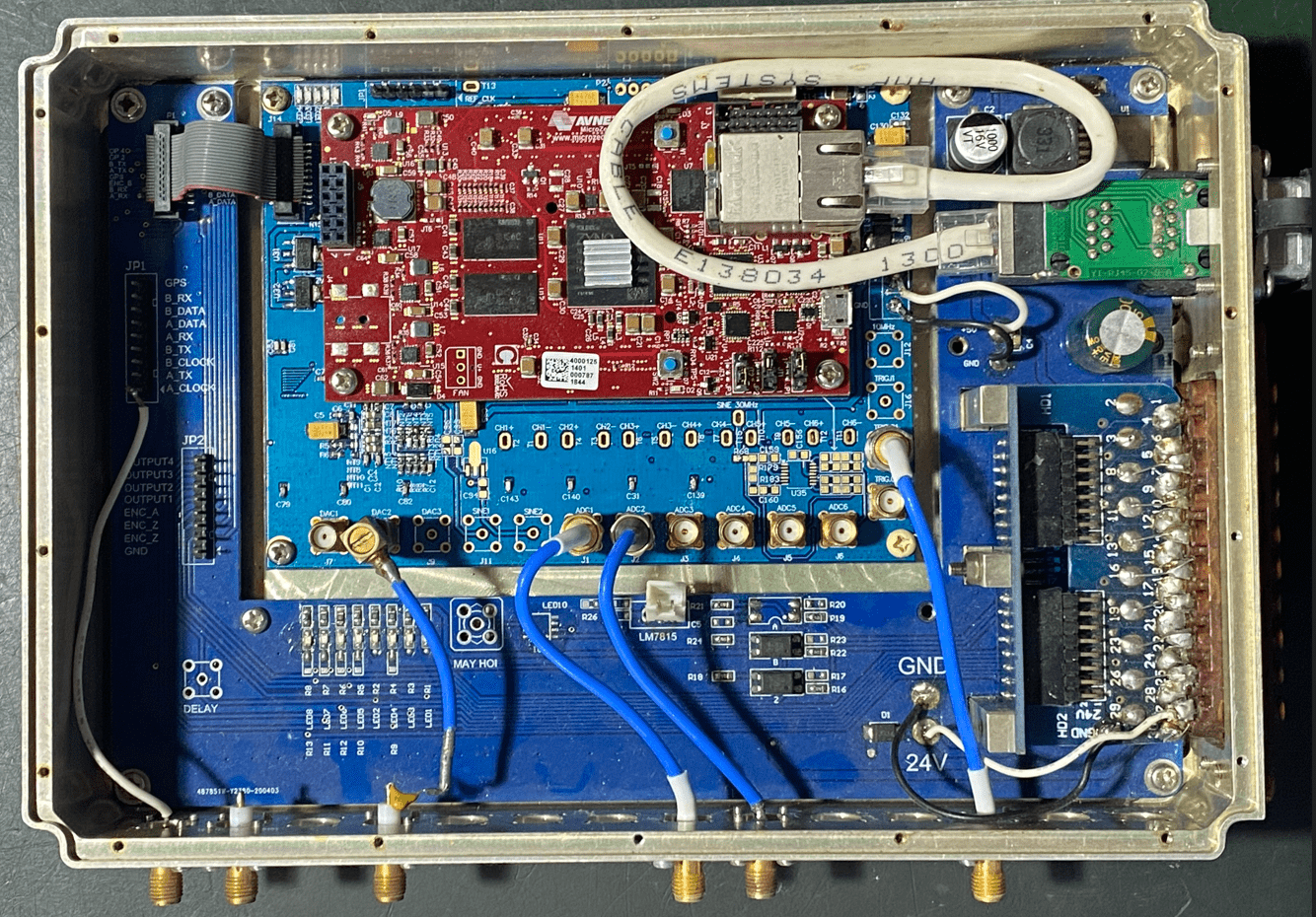

- here is real image of ADC board



2. MODULE ADC 40 MHz 4 CHANNEL

- this is 3D image of ADC 40 MHz 4 Channel, module use ADC board in https://hfequipment.vn/40msps-high-speed-adc-dac-4-channel

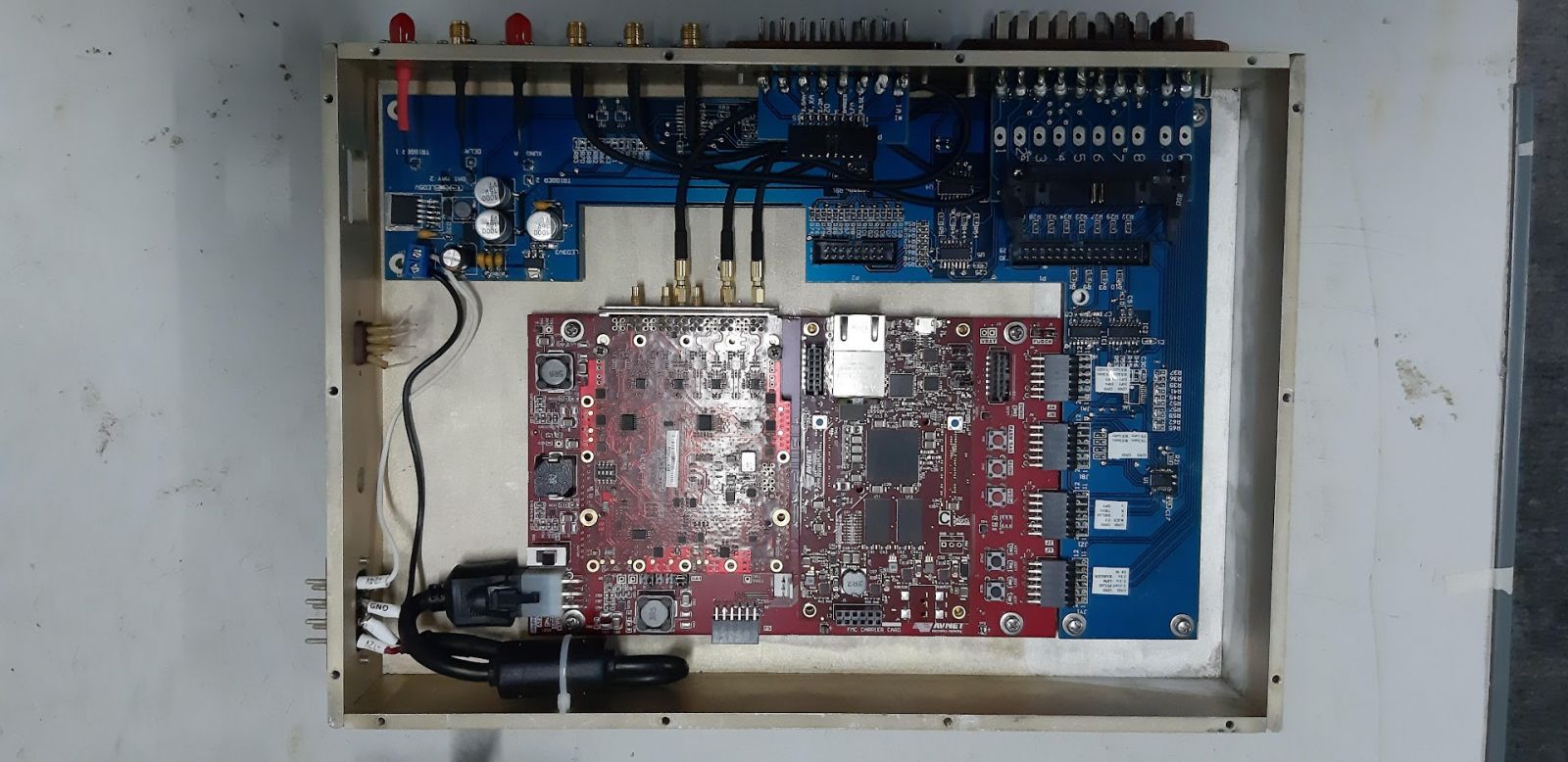

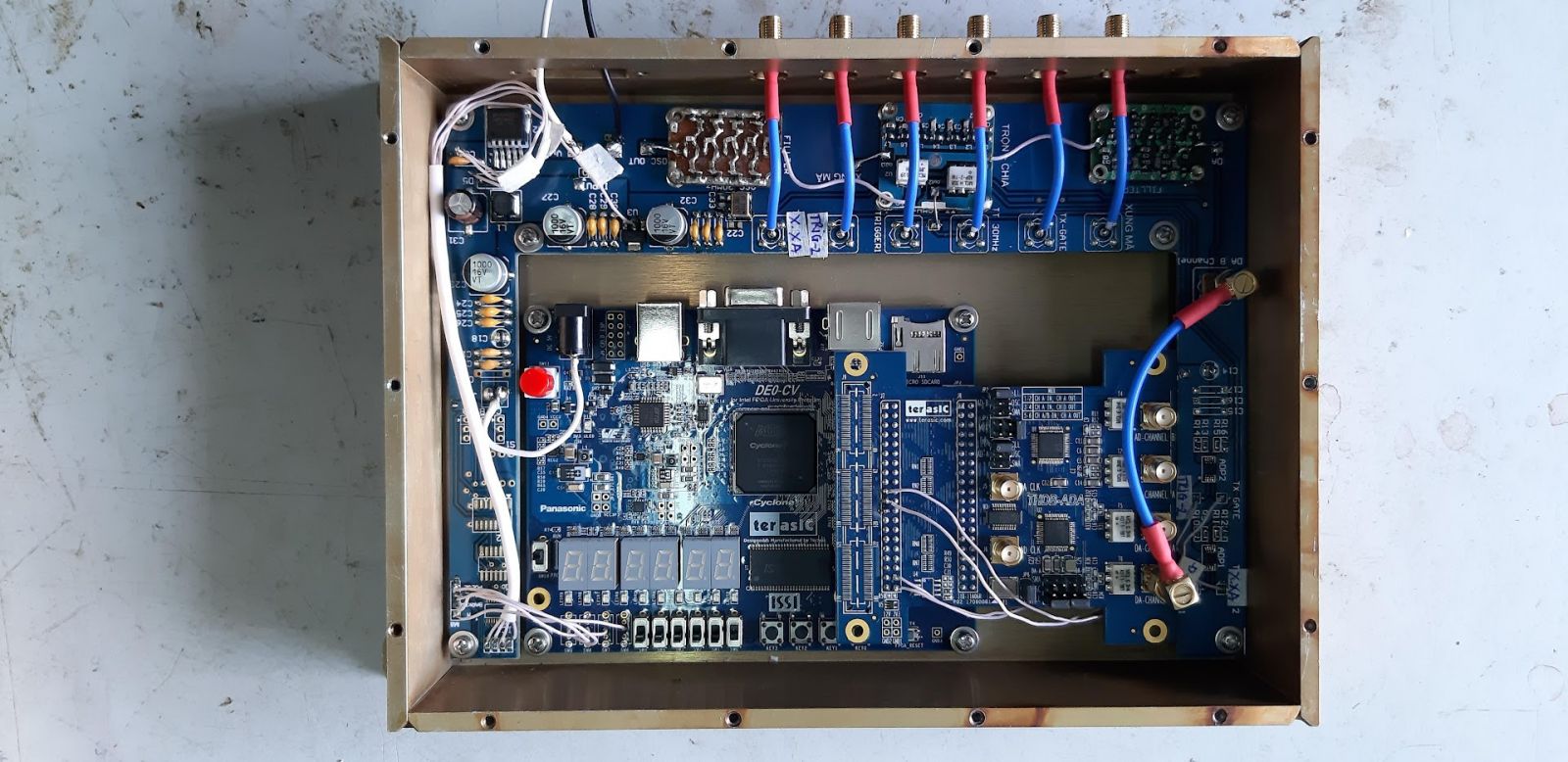

- this is real image of ADC module



3. MODULE MOTOR CONTROL



- this is 3D image of Motor Control, module use ADC board in https://hfequipment.vn/100msps-high-speed-adc-4-channel

- this is real image of ADC module



4. MODULE KEYBOARD

- this is 3D image of Module Keyboard, module use Microzed Keyboard

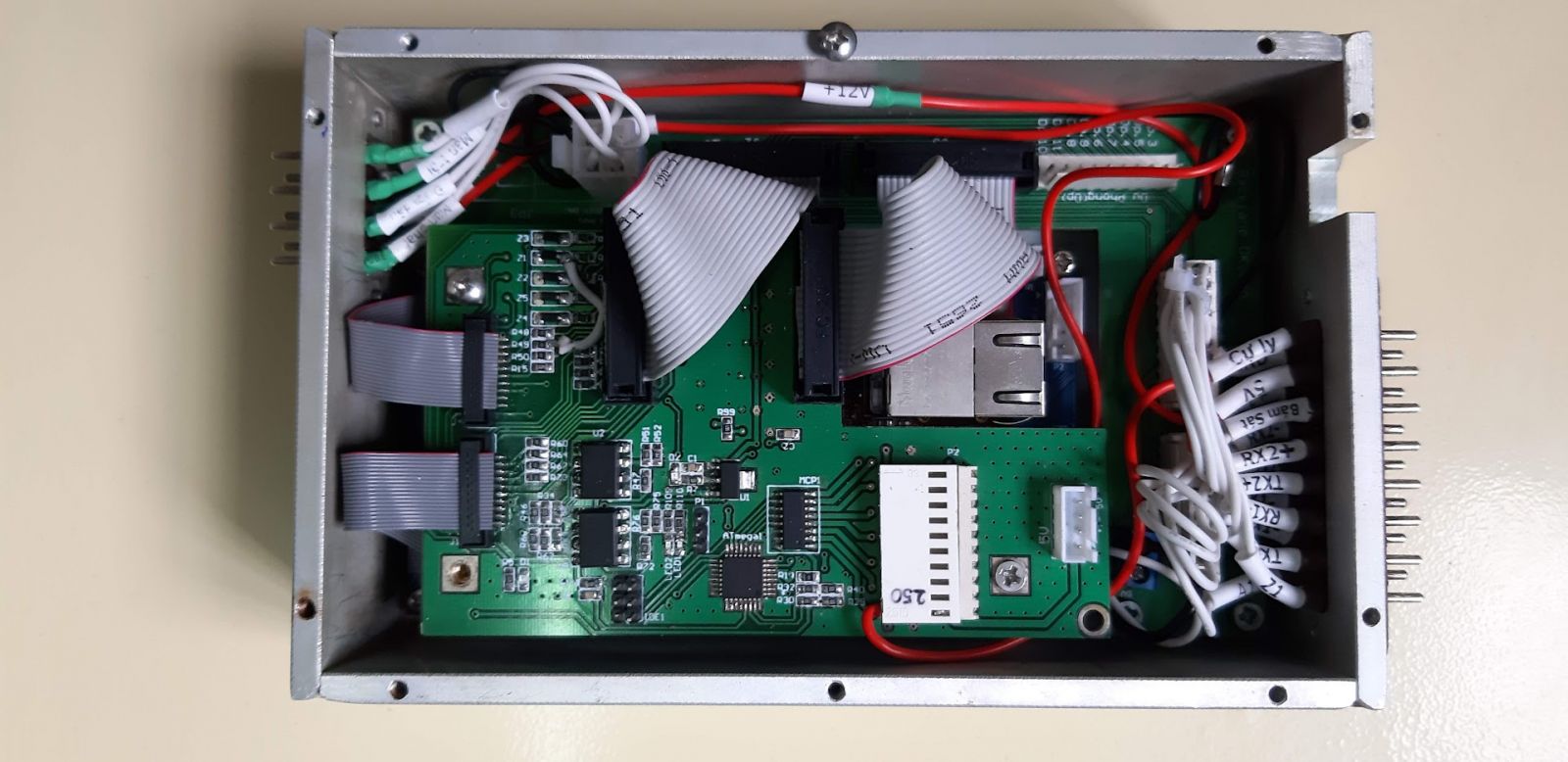

- this is real image of  module Keyboard



5. MODULE ADC 120 MHz 2 CHANNEL

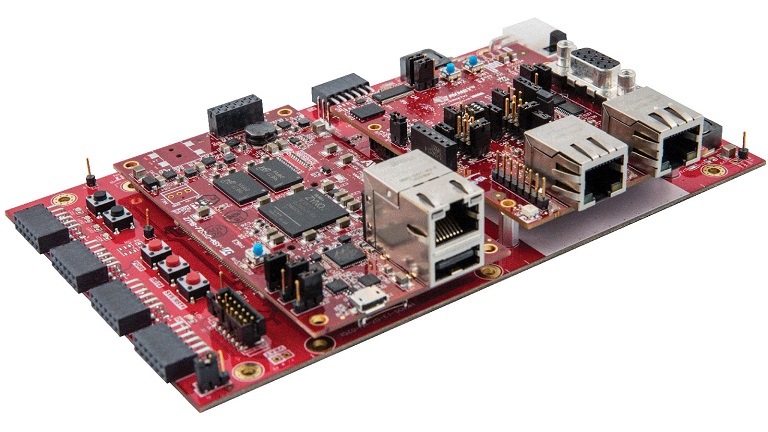

- this is 3D image of Microzed and FMC board, FMC board can use Ethenet, ADC, SSD and other module has FMC Port

- we use Microzed and FMC ADC board to design 120MHz 2 Channel ADC

'

6. MODULE DDS SIGNAL



- this is image of DDS Sine signal, 30MHz

7. MODULE MOTOR CONTROL MINI

- this is image of Motor control Mini, our design using Microzed board

- other 3D view

- here is real image of motor control mini
